The maximum load capacity of the rescue support drone is 50kg, and it can last for 20 minutes with a 7.5kWh capacity battery under a load of 30kg. The ground mooring power supply module can also be replaced to achieve 24-hour continuous aerial operation. By switching between different functional load modules, emergency firefighting applications such as reconnaissance calls, surveying and modeling, monitoring and surveillance, communication relay networking, fire extinguishing, and material delivery can be achieved. Cooperate with the compressed air foam truck and the system to tie DN40 fire hose to realize the function of spraying fire extinguishing. The operating height can reach 100m, and the flow rate is 1200L/min to spray compressed air foam for continuous fire extinguishing.
Good flight attitude, rigorous wind tunnel experimental design for aerodynamics, and total energy adaptive algorithm for flight control. Both ensure stable posture and clear image quality.

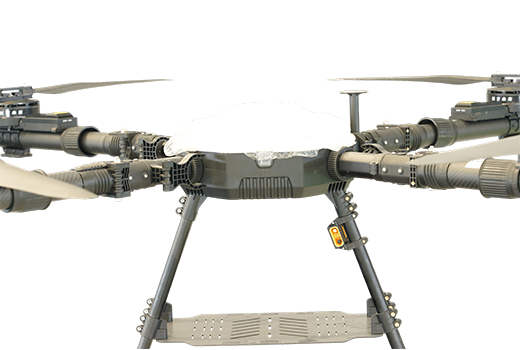

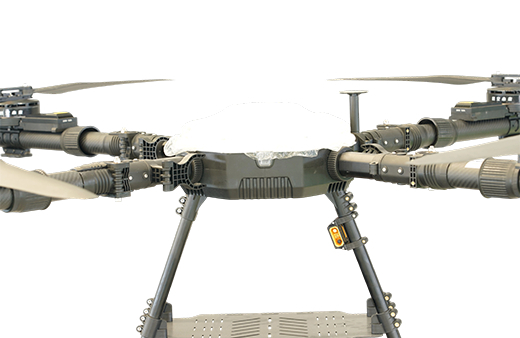

Plug in module design, detachable arm.
Application load
The system is equipped with a multifunctional intelligent pod that can assist drone operators in precise operations; Equipped with airborne fire extinguishing combat equipment, it can achieve front/bottom spray pressure storage fire suppression, throwing fire suppression, and horizontal launch fire suppression; Equipped with airborne rescue devices, emergency supplies can be deployed.
Multi functional intelligent pod
The multifunctional intelligent pod integrates laser ranging, visible light imaging, strong light illumination, and laser aiming system, which can assist operators in precise firefighting and rescue operations. The provided strong light illumination system enables the drone to have precise nighttime operation capabilities.
Intelligent shouting
Adopting an internal magnetic speaker and a close range anti whistling design, it has the characteristics of stable sound quality, loud sound, and clear shouting, and can be used for remote shouting.
Throwing type emergency rescue system
The throwing type emergency rescue device adopts a unique fast hanging and quick changing structure, and uses a gravity based automatic release device, which has the advantages of simple grasping and fast operation.
